Excavator Attachments


MGF Hydraulic VibroPilePac

as attachment to Hydraulic Excavators


Model   VP 35 VP 60 VP 100
Eccentric Moment Nm 9 14 28
  in-lb 80 133 248
Dynamic Force max.  kN 90 140 200
  tons 10 16 22
Frequency max rpm 3000 3000 2520
  vpm 3,000 3,000 2,520
Amplitude mm 10,0 12,8 17,8
  inch .40 .50 .70
Oil Pressure max. bar 350 350 350
  psi 5,075 5,075 5,075
Oil Flow max. l/min 58 85 98
  gpm 15 23 26
Vibrating Mass kg 180 220 325
  lbs 396 484 715
Total Weight approx. kg 380 420 550
  lbs 836 924 1,210

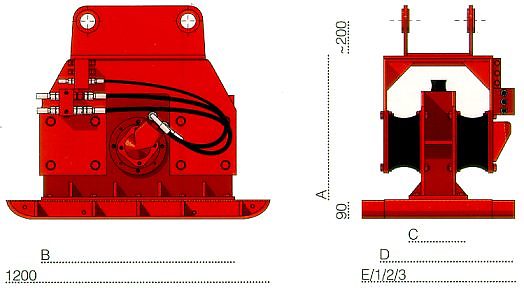

Measurements
A mm 600 615 680
  inch 23.5 24 27
B mm 800 800 1150
  inch 31.5 31.5 45
C mm 230 230 400
  inch 9 9 16
D mm 550 550 730
  inch 21.5 21.5 28.5
E/1 mm 400 400 400
  inch 15 15 15
E/2 mm 600 600 600
  inch 23.5 23.5 23.5
E/3 mm 800 800 800
  inch 31.5 31.5 31.5
Subject to constant improvement and engineering progress we reserve the right to make changes of specification without notice.
